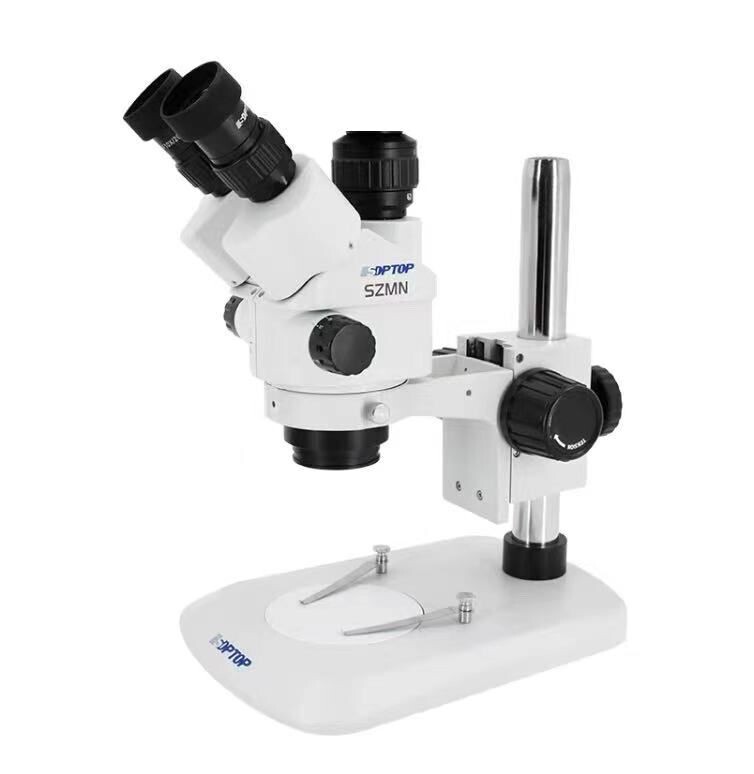

SOPTOPSZMN7045-B4 ميكروسكوب
ميكروسكوب SOPTOPSZMN7045-B4
نظام بصري عالي الجودة
مكونات بصرية مطلية بطبقة خاصة خلقت نظامًا بصريًا عالي الجودة
التكبير القياسى للميكروسكوب 7X-45X
العدسة 10X
مجال الرؤية 20مم WF10X/20
داعم للكاميرا ومجهز بعدسة CTV
مجهز بمصباح اضاءة دائرى LED عالى السطوع
| yepiece |
Wide field high eyepiont eyepiece WF10X/20mm, WF15X/15mm,WF20X/10mm（can mount micrometer） |
| Wide field high eyepiont eyepiece and diopter adjustment eyepiece WF10X/20mm、WF15X/15mm、WF20X/10mm（can mount micrometer） |
|
| Viewing Head |
SZMN7045：Binocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, both two tube diopter adjustment(±5) |
| SZMN7045：Trinocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, both two tube diopter adjustment(±5) |
|
| SZMN645: Binocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, fixed eyepiece tube ( used for diopter adjustment eyepiece) |
|
| SZMN645：Trinocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, fixed eyepiece tube ( used for diopter adjustment eyepiece) |
|
| DVSZMN645: Digital head with LCD screen. 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, fixed eyepiece tube ( used for diopter adjustment eyepiece) 8 inch LCD screen, resolution ratio 800*600,CCD 520 TVLINES |
|
| Auxiliary Lens |
0.5X/165mm. 0.75X/105mm. 1.5X/45mm. 2X/30mm. |
| Focus |
SZMA1 focus arm, two focusing knobs are with tension adjustable, adjust range 50mm. |
| SZMNA1 focus arm, two focusing knobs are with tension adjustable, adjust range 50mm. |
|
| SZA2 industry bound focus arm 1 (industry exclusive use) |
|
| SZA3 industry bound focus arm 2 (industry exclusive use) |
|
| Stand |
B4 pillar type sector plain stand |
| SZMST2 pillar type transmission stand, top & bottom halogen illuminator 12V15W (brightness adjustment). |
|
| SZMST3 pillar type transmission stand, top illuminator with 12V15W halogen bulb, brightness adjustment. bottom illuminator with 7W fluorescent light, fixed brightness |
|
| SZSTL1 single arm universal stand |
|
| SZSTL2 double arm universal stand |
|
| Other light source |
Ring light/LED/Fiber |
| Photo device |
Photo tube（with PK mount），4X photo eyepiece |
| TV device |
0.35X/0.5X/1.0X C-mount adapter |
| Others |
Precision measurement platform, dark field condenser, jewelry clip |
